Fire protection F 30-B AGEPAN® THD Install / AGEPAN® THD T+G + cellulose

Construction type for installing a structural enclosing wooden post-and-beam construction of fire resistance class F 30-B acccording to DIN 4102-2:1977-09 consisting of a solid construction timber (KVH) stud frame with cellulose cavity insulation as well as inner and outer lining for one-sided fire exposure.

Specifications

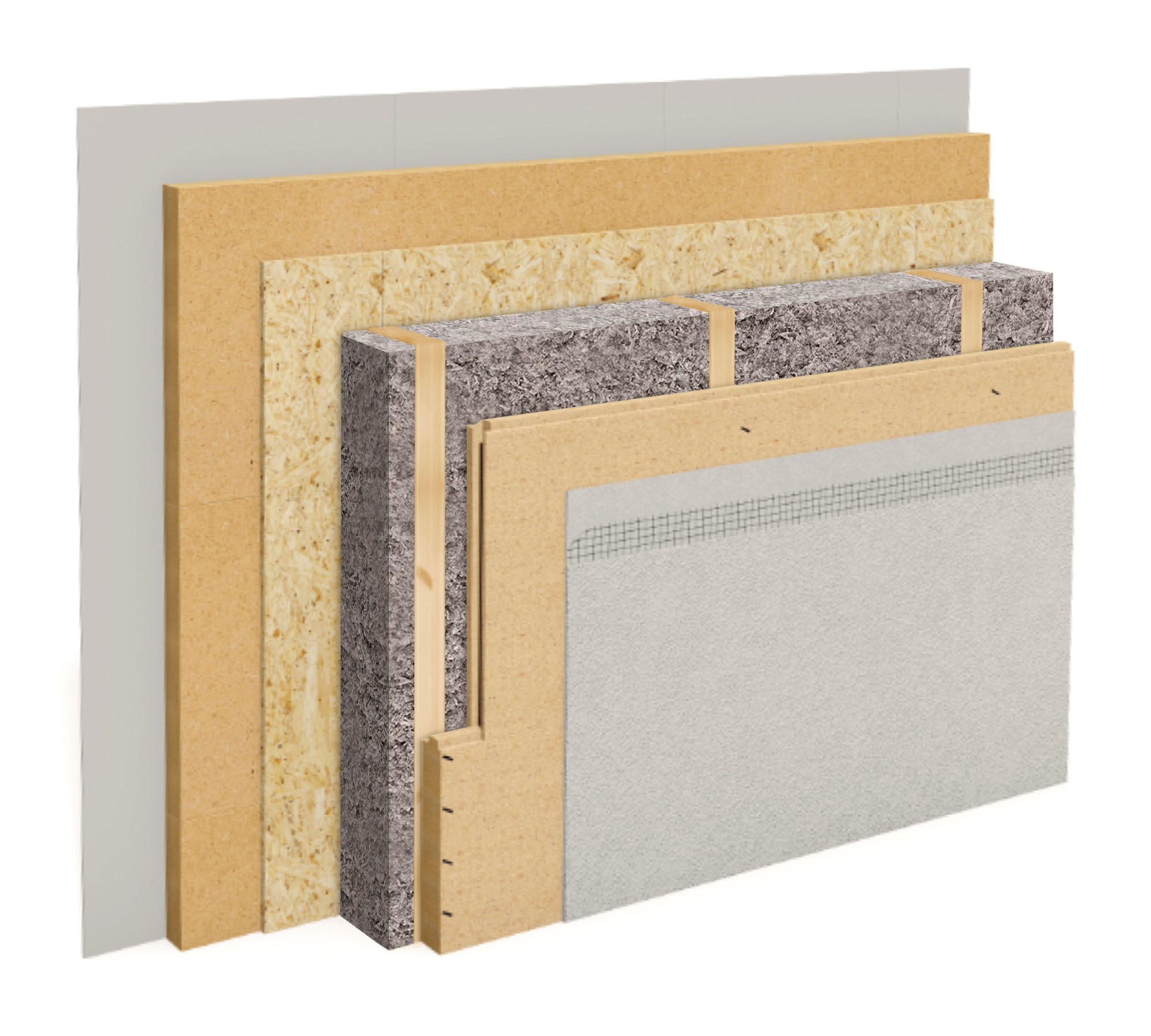

Construction Example	Product	Nominal Thickness (mm)
Inside	Gypsum board	≥ 12,5
	AGEPAN® THD Install	≥ 60
	AGEPAN® OSB 3 ECOBOARD®	≥ 15
	Solid construction timber	≥ 60 x 200
	Cellulose blow-in insulation (Isocell)	≥ 200
Outside	AGEPAN® THD T+G	≥ 60

Inside
Product	Gypsum board
Thickness	≥ 12,5
Product	AGEPAN® THD Install
Thickness	≥ 60
Product	AGEPAN® OSB 3 ECOBOARD®
Thickness	≥ 15
Product	Solid construction timber
Thickness	≥ 60 x 200
Product	Cellulose blow-in insulation (Isocell)
Thickness	≥ 200
Product	AGEPAN® THD T+G
Thickness	≥ 60
Outside

Construction example. Details, exact dimensions and thicknesses can be found in the respective test certificates, standards and building regulations. Please observe the processing instructions.

System’s components

AGEPAN® THD INSTALL Installation level or pressure-resistant interior insulation in roof and wall areas. KNOW MORE

NEW

AGEPAN® THD T+G Perfect insulation: Extremely pressure-resistant due to the asymmetrical raw density profile. KNOW MORE

AGEPAN® OSB 3 ECOBOARD The load-bearing panel. For universal use in timber frame constructions. KNOW MORE
