Fire Protection F 30-B AGEPAN® DWD protect + cellulose

Construction type for installing a structural enclosing wooden post-and-beam construction of fire resistance class F 30-B acccording to DIN 4102-2:1977-09 consisting of a solid construction timber (KVH) stud frame with cellulose cavity insulation as well as inner and outer lining for one-sided fire exposure.

Specifications

Construction Example	Product	Nominal Thickness (mm)
Inside	AGEPAN® OSB 3 ECOBOARD	≥ 15
	Solid construction timber	≥ 60 x 200
	Cellulose blow-in insulation (Isocell)	≥ 200
Outside	AGEPAN® DWD protect	16

Inside
Product	AGEPAN® OSB 3 ECOBOARD
Thickness	≥ 15
Product	Solid construction timber
Thickness	≥ 60 x 200
Product	Cellulose blow-in insulation (Isocell)
Thickness	≥ 200
Product	AGEPAN® DWD protect
Thickness	16
Outside

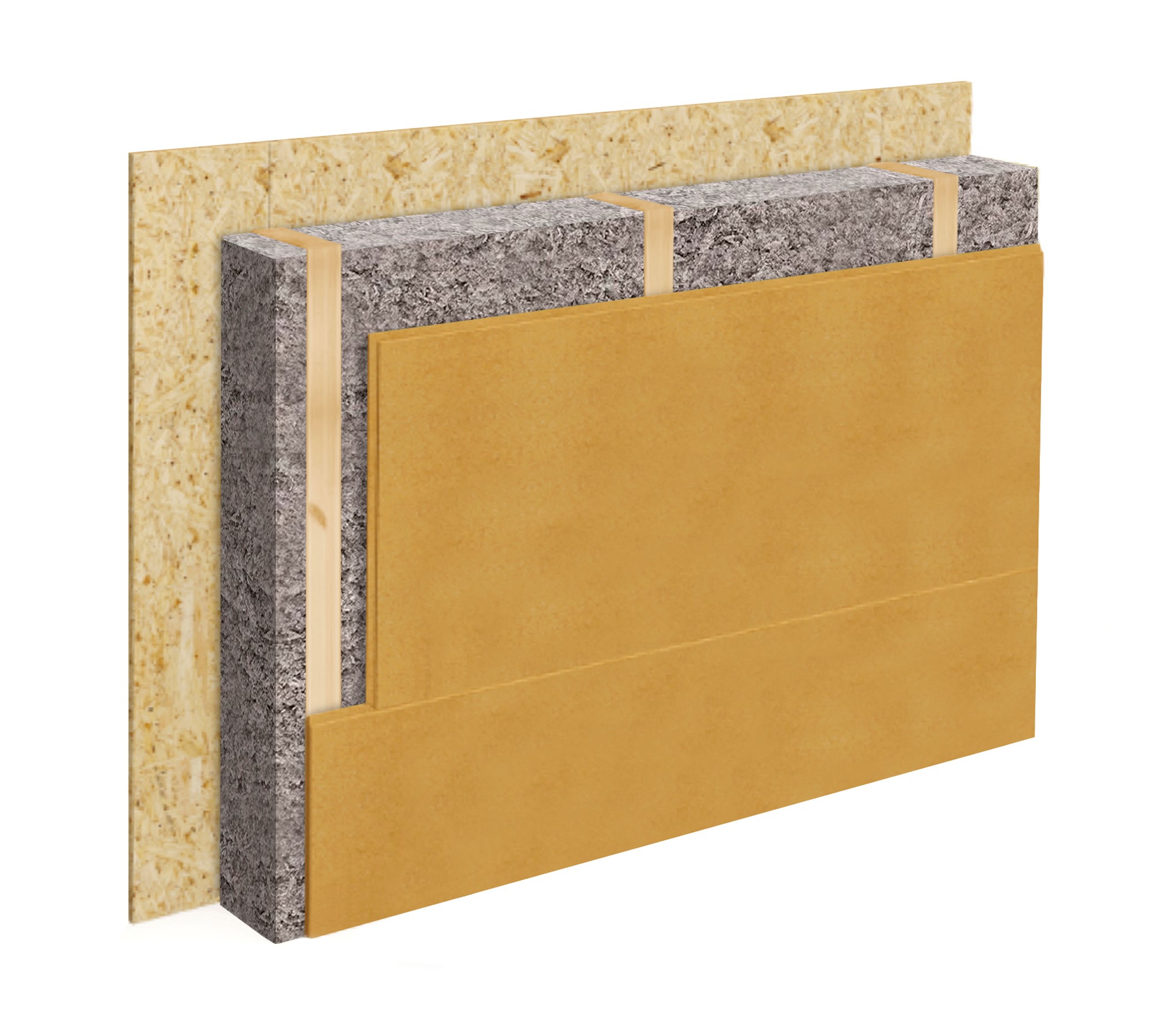

Construction example. Details, exact dimensions and thicknesses can be found in the respective test certificates, standards and building regulations. Please observe the processing instructions.

System’s components

AGEPAN® DWD PROTECT The original. Stable, stiffening and load-bearing planking in roof and wall. KNOW MORE

AGEPAN® DWD MAX The large-format roof and wall board. For even faster and more efficient production. KNOW MORE

AGEPAN® OSB 3 ECOBOARD The load-bearing panel. For universal use in timber frame constructions. KNOW MORE
